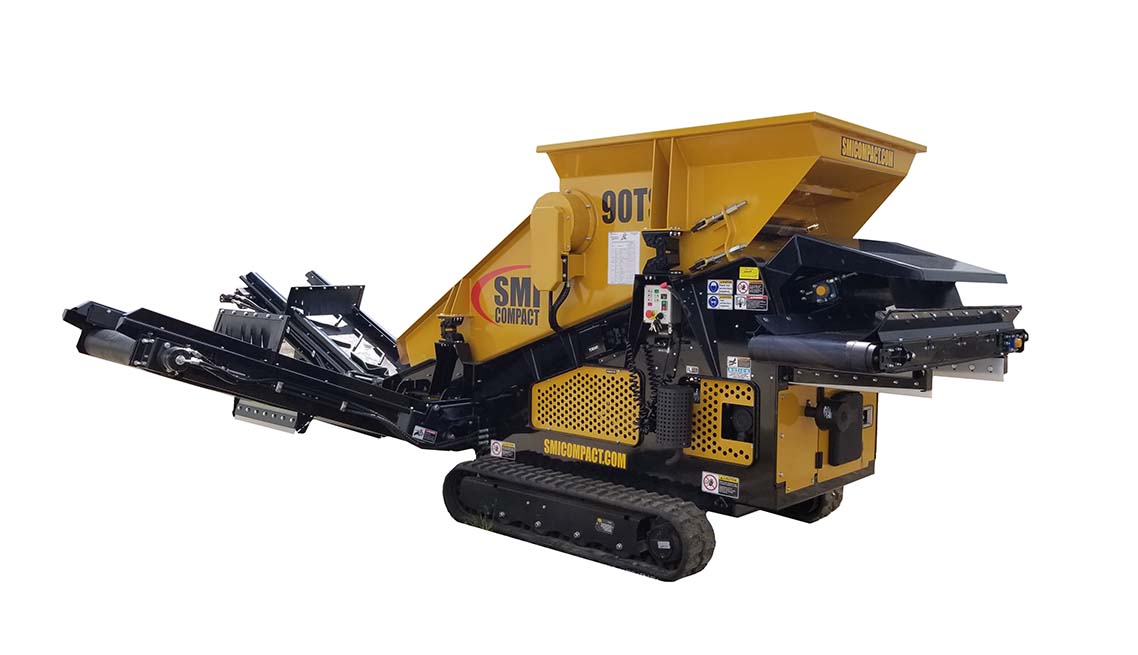

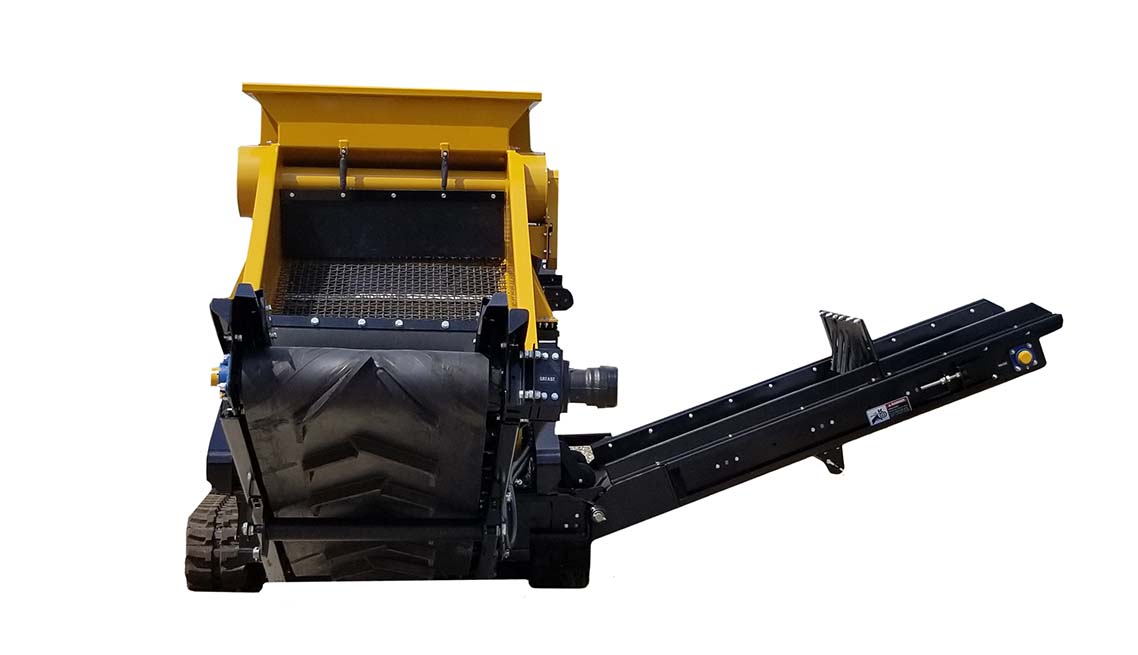

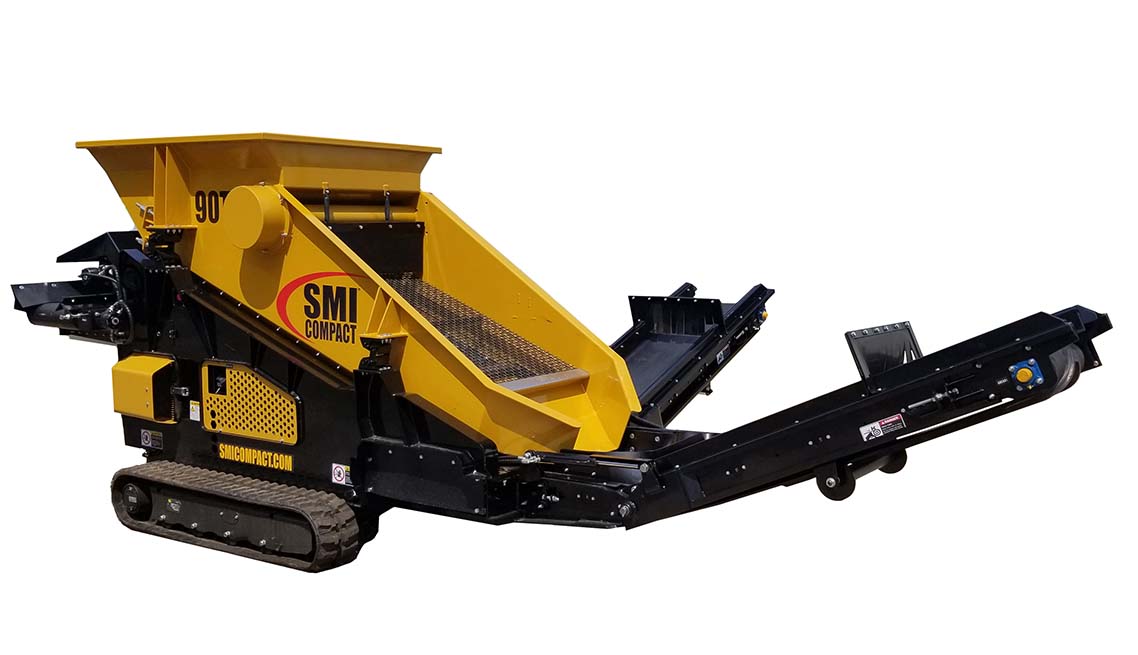

90TS Tracked Compact Screening Plant
This self-contained compact screening plant comes complete with a receiving hopper, double-deck screen, three-cylinder diesel engine, and three stockpiling conveyors, all mounted on a remote control tracked chassis. It is designed for customers who need three screened products and is ideal for landscaping, golf courses, crushed aggregates, and sand.
The screened material can be separated exactly where it is needed on site. Oversize and undersize contamination can be removed to create useable finished products from waste. It can be fed by excavator or directly from a crusher conveyor to make a complete system.
The compact dimensions and low weight mean it can be easily transported and the hydraulically folding conveyors allow the plant to be set up in a matter of minutes.
| STANDARD FEATURES |
|---|
| 4′ x 5′ feed hopper (no feeder) |
| Choice of screen meshes |
| Tethered cord remote control; One-button control – a single button turns on everything |
| Capacity of up to 90 tons per hour output (depending on application) |
| 25hp 3-cylinder Kubota water-cooled diesel engine |
| Fuel consumption approximately .88 gallons per hour |
| 22” wide oversize and midsize product belts; 19” fines product belt |
| Reversible direction on fines conveyor |
| 3’ x 8’ double-deck screen |
| 16-gallon fuel tank |
| Pairs with 50TJ Jaw Crusher for a complete system |
| Load with mini excavator or a small skid steer |
| Towable with truck and landscape trailer |
| DIMENSIONS | |
|---|---|
| Operating | Travel |
| Length 18’-4” | 14’-1” |
| Width 10’-10” | 6’-2” |
| Height 7’-2” | 7’-10” |
| Weight 6,300 lbs. | Weight 6,300 lbs. |
