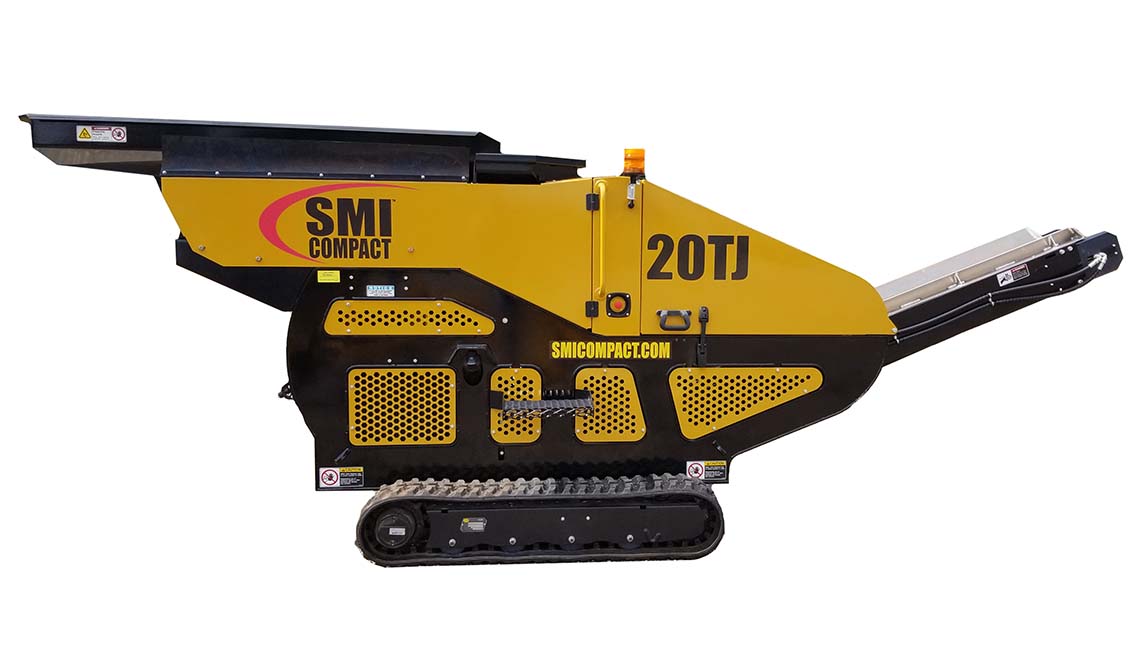

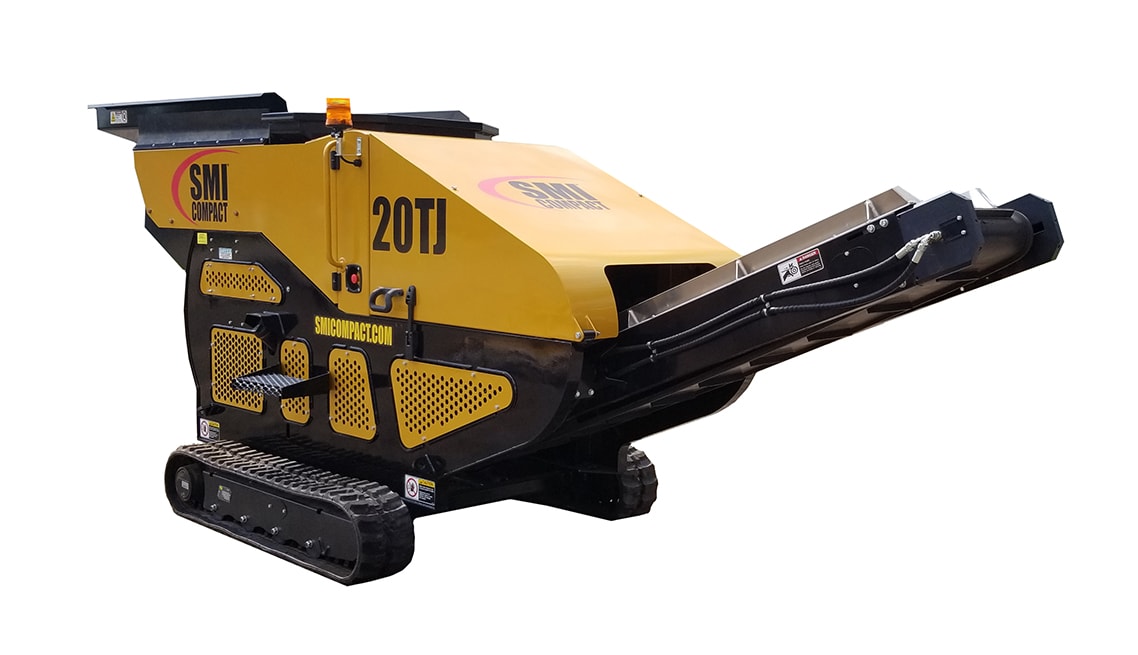

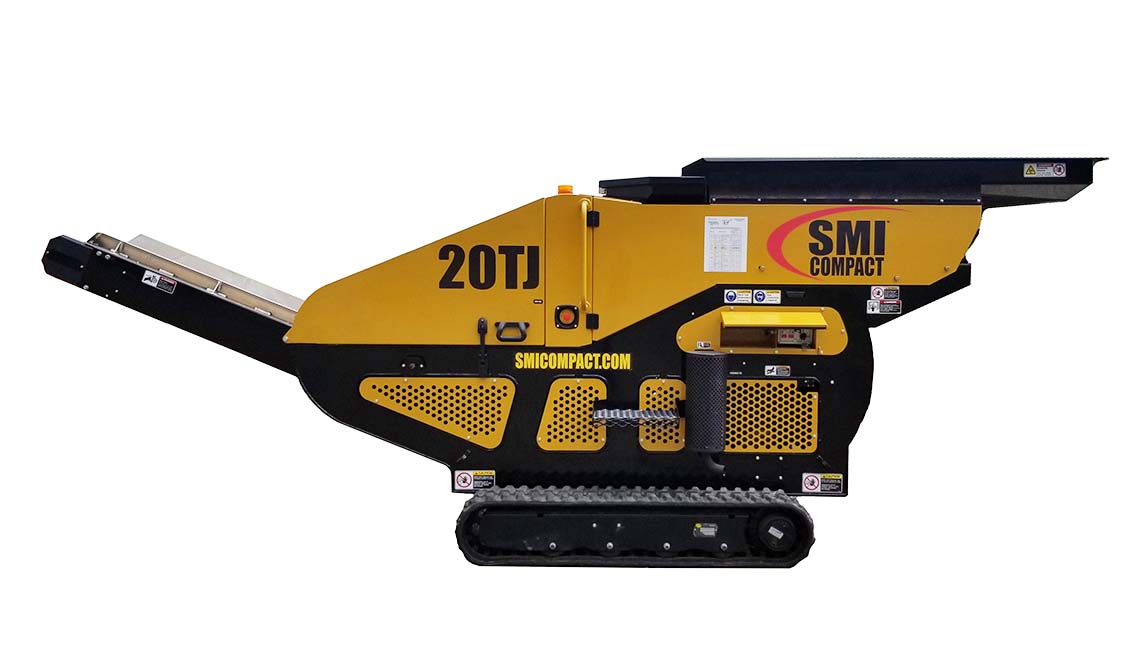

20TJ Tracked Compact Jaw Crusher

The Model 20TJ is a 10” x 20” track mounted jaw crusher featuring a hydraulically driven vibratory feeder operated by the remote-control handset. Instant hydraulic adjustable jaws allow output product sizes ranging from ¾” up to 3”. At just 5’-6” wide, the 20TJ can enter sites where access and space may be limited. Dust suppression is fitted as standard on this unit by means of fine water spray nozzles utilizing standard domestic hose pressure.

This compact crusher is very popular with excavation companies wanting to crush onsite, or those looking to reduce their landfill costs. The 20TJ makes quick work of reinforced concrete, brick, porcelain and other aggregate products. Crushing with this machine can save thousands of dollars by creating useable product. It is easily transported from site to site by trailer and can be up and crushing within 5 minutes of arrival. The wireless remote-control system makes the 20TJ a one man operation. The 20TJ provides unrivaled reliability and performance in its size class.

STANDARD FEATURES
Jaw aperture of 10” x 20”
Average product size ¾”-3”
25hp, 4-cylinder Kubota diesel engine
Fuel consumption is approximately 1.1 gallons per hour
Output range of 17-22 tons per hour
Wireless remote control system for all functions, plus tethered cable
16” Main belt conveyor
8 gallon fuel tank; 38 gallon hydraulic tank
Cross-belt magnet optional
Dust suppression
Hydraulically adjustable jaws; Hydraulically reversible jaw
Towable with truck and landscape trailer
Vibratory feeder (no grizzly)
DIMENSIONS
Length: 18’-6”
Width: 5’-6”
Loading Height: 6’-9”
Weight: 6,750 lbs
