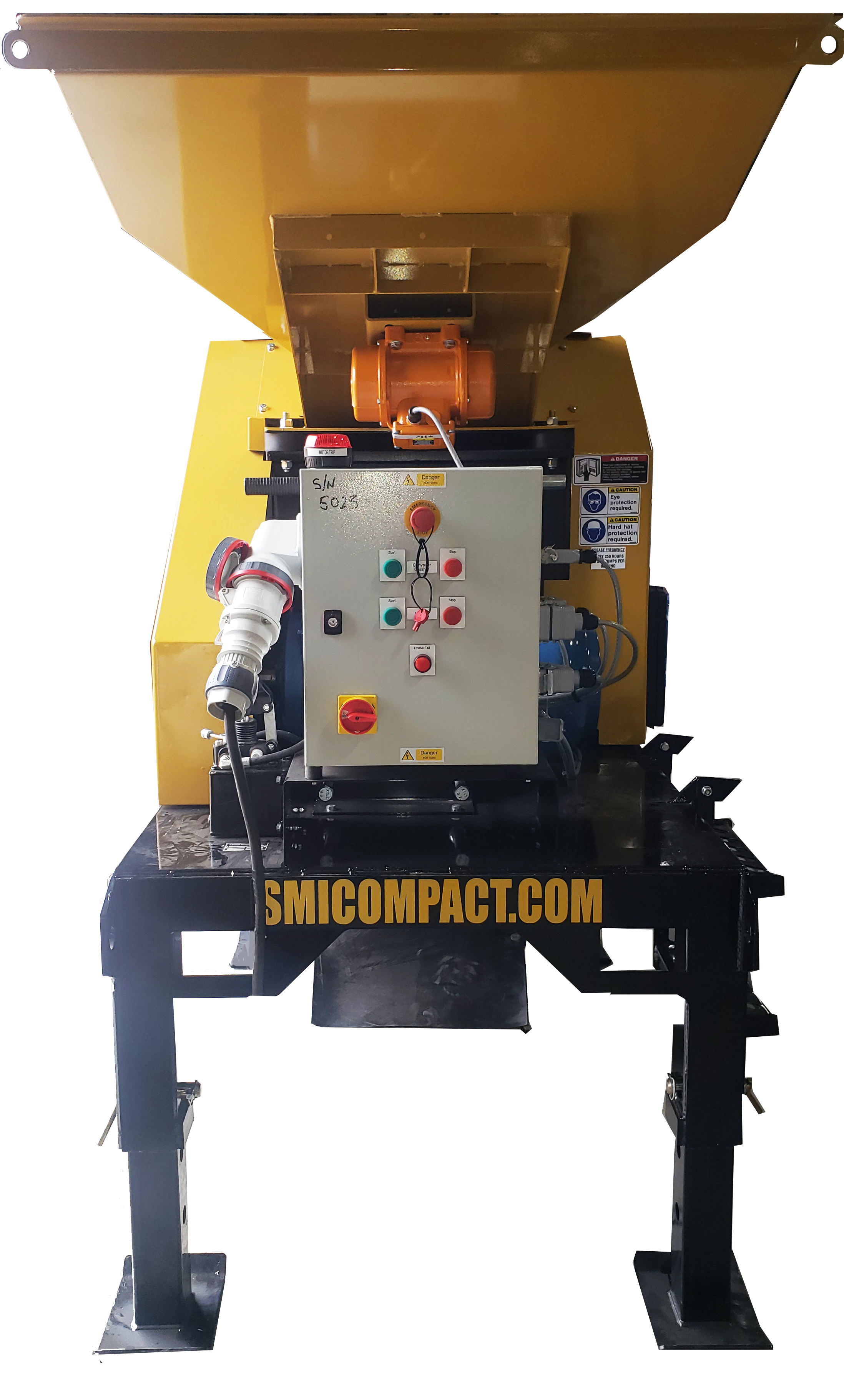

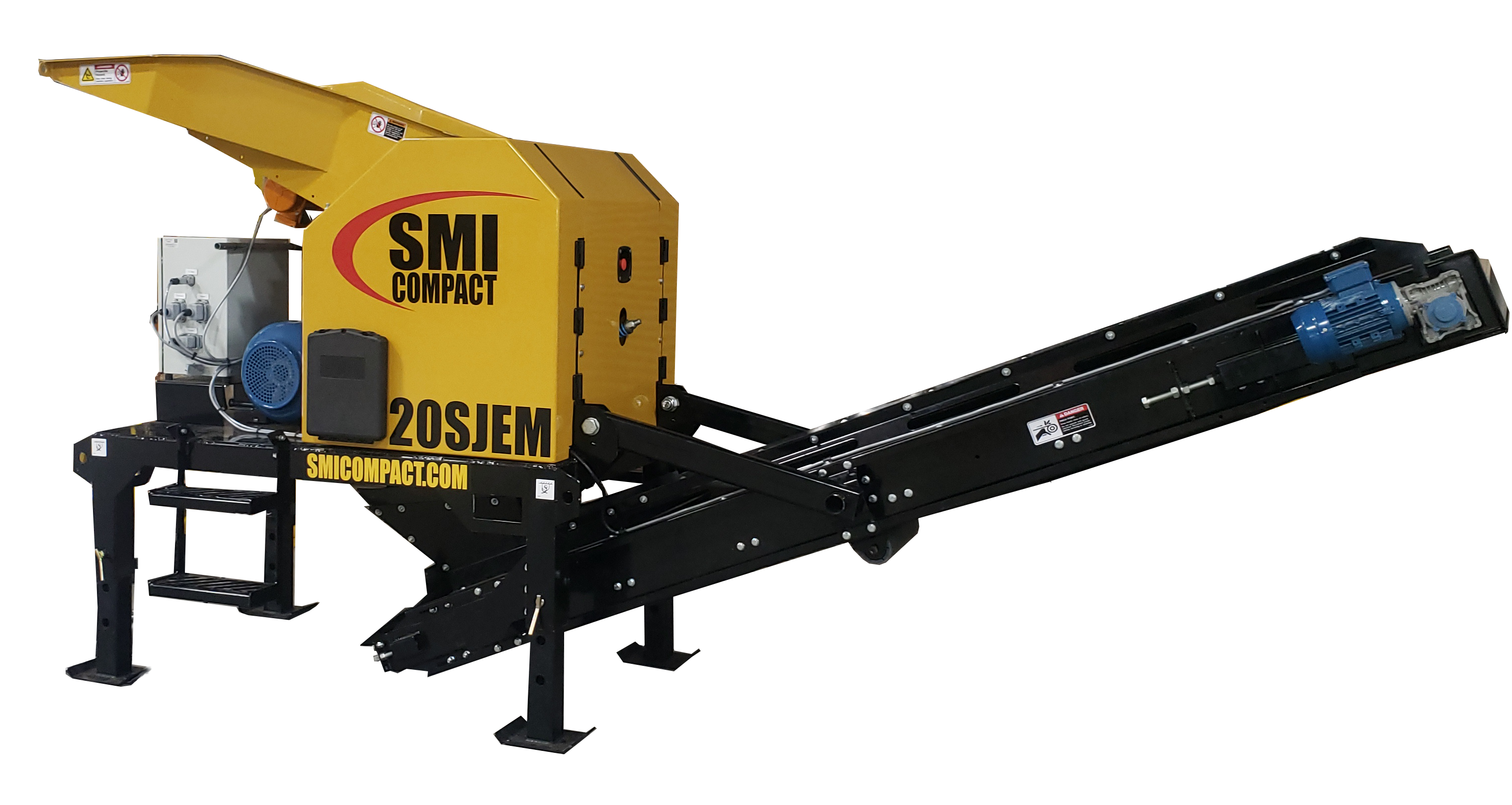

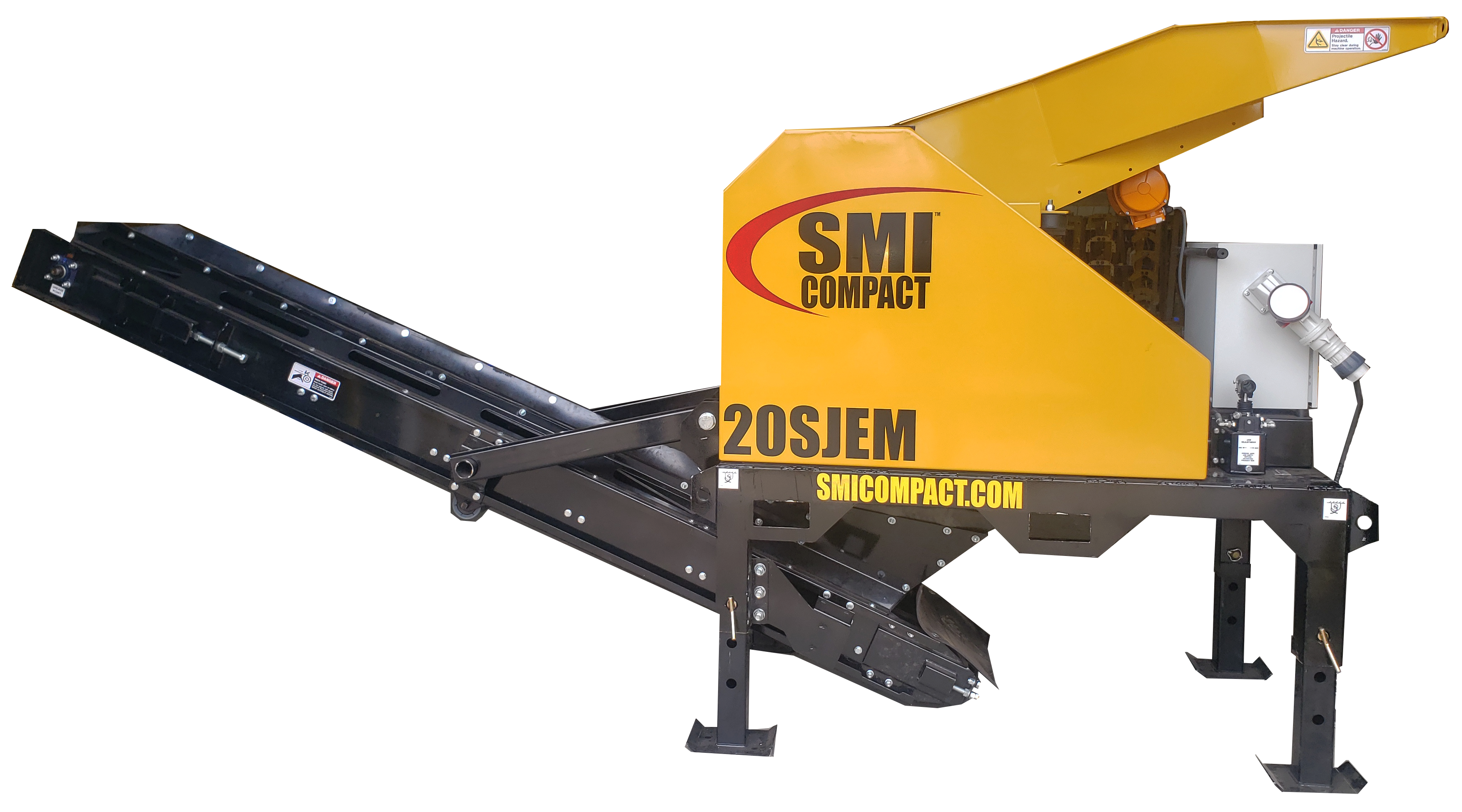

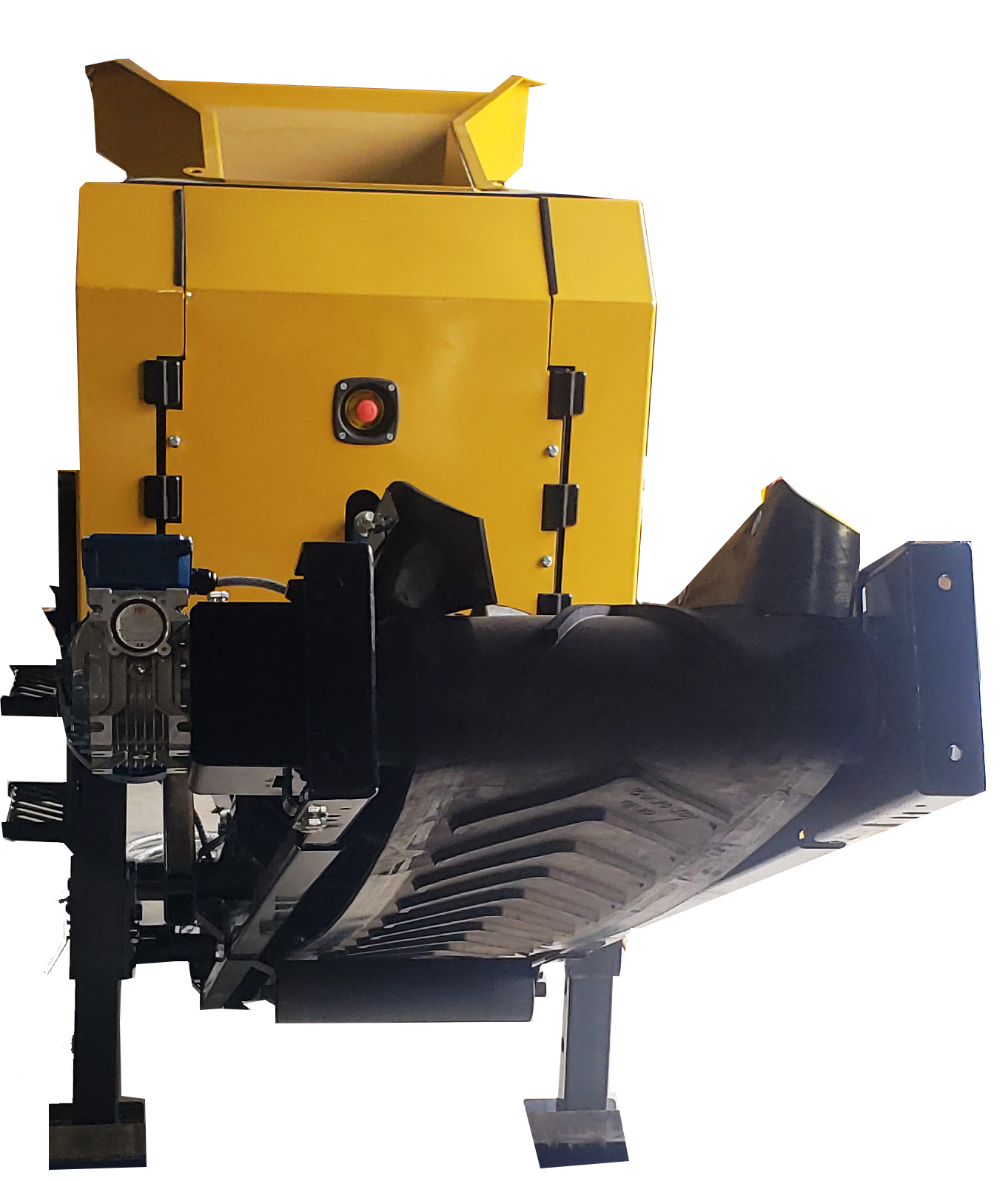

20SJ Stationary Compact Jaw Crusher
The Model 20SJEM is a 10” x 20” stationary jaw crusher. Utilizing the same crusher as our Model 20TJ, this machine also has instant hydraulic adjustable jaws that allow output product sizes ranging from ¾”-4”. Dust suppression is standard on this machine.
These compact crushers are also popular with small factories, landscapers, small builders/demolition companies, waste recycling and developers. Powered by standard 220V outlet (other power options available).
Utilize the Model 20SJ for small scale crushing projects as a cost-effective method of avoiding disposal and haul-away fees. Simply move the crusher into position, plug in your electric power source and you are ready to crush in less than 5 minutes. The 20SJEM easily crushes a variety of products.
| STANDARD FEATURES |
|---|
| Jaw aperture of 10” x 20” |
| Average product size ¾”-4” |
| 220V electric powered |
| Output range of 17-22 tons per hour |
| Load by hand or conveyor |
| Same Jaw Crusher as 20SJ Tracked |
| Adjustable jaws |
| Can mount on skid steer, the ground or a trailer |
| DIMENSIONS |
|---|
| Length: 6’-4” |
| Width: 3’-11” |
| Loading Height: 6’-7” – 7′-5″ |
| Weight: 4,167 lbs. |
